Official Arduino Mega 2560 ATmega2560 MCU Rev3 A000067

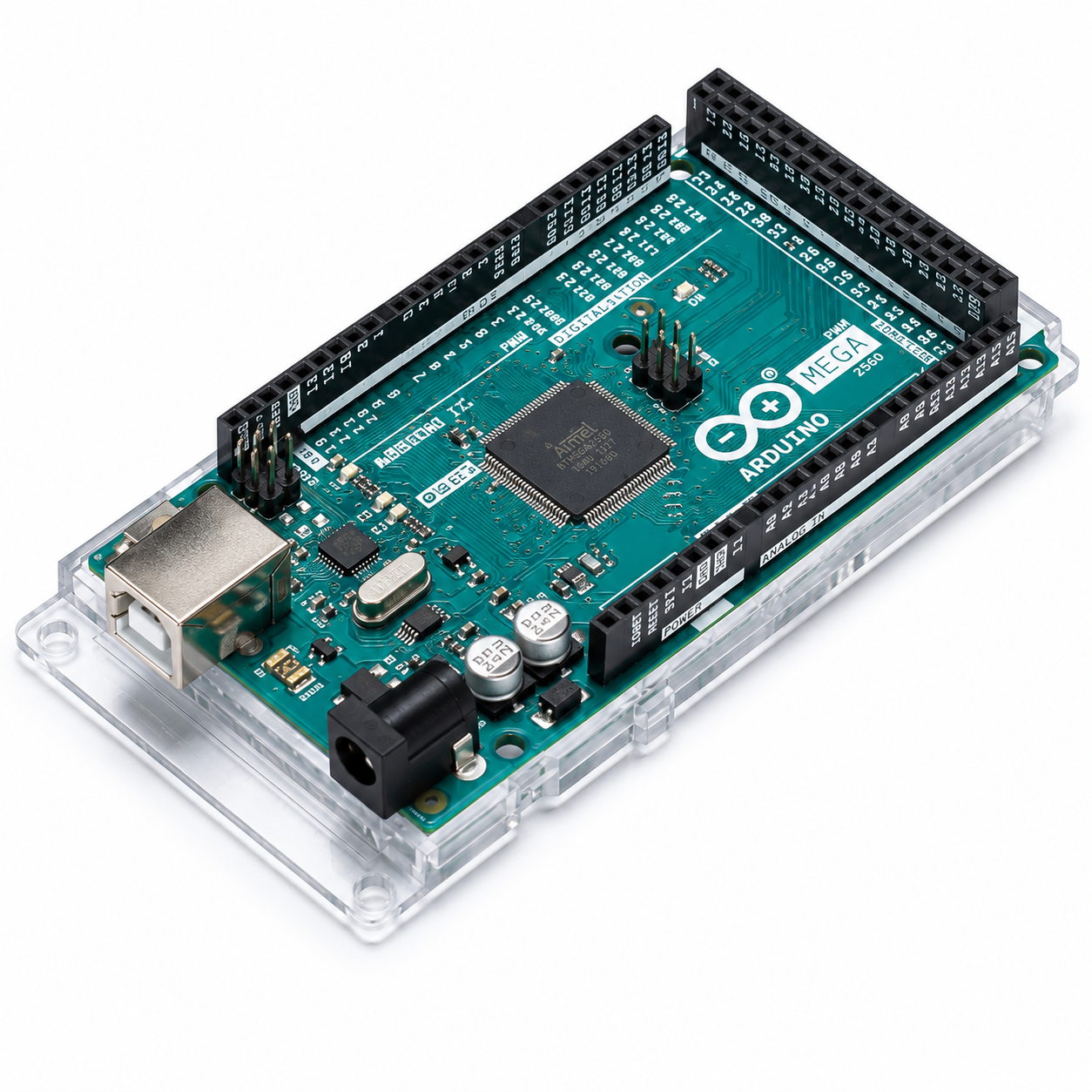

The Official Arduino Mega 2560 Rev3 A000067 is a powerful
microcontroller development board designed for complex electronics,
robotics, automation, IoT, and embedded applications. Powered by the
ATmega2560 microcontroller, it offers abundant digital and analog I/O,
expanded memory, and improved USB communication through the ATmega16U2 USB
interface. With its extensive GPIO capability and compatibility with
Arduino shields, it is the perfect platform for advanced makers,
engineers, educators, and industrial developers.
ATmega2560 8-Bit AVR Microcontroller
ATmega16U2 USB-to-Serial Converter
Official Arduino Mega 2560 Rev3 Board
1.0 Standard Arduino Pinout
5V Operating Voltage
Recommended Input Voltage: 7V–12V
54 Digital Input / Output Pins
16 Analog Input Pins
15 PWM Output Channels
256KB Flash Memory
8KB SRAM
4KB EEPROM
Improved RESET Circuit
USB Type-B Programming Interface
Compatible with Arduino IDE & Shields
Ideal for Robotics, Automation & IoT Projects
Official Arduino Mega 2560 ATmega2560 MCU Rev3 A000067
The Official Arduino Mega 2560 Rev3 is a powerful
development board based on the ATmega2560 microcontroller.
It is designed for advanced electronics, automation, robotics, embedded
development, sensing, instrumentation, communication, and prototyping projects
that require more pins, memory, and serial ports than standard Arduino boards.
The board features 54 digital input/output pins, of which
14 can be used as PWM outputs, along with
16 analog inputs, 4 UART hardware serial ports,
a 16MHz crystal oscillator, USB connection, power jack,
ICSP header, and reset button. It contains everything needed to support the
microcontroller and can be powered using a USB cable, AC-to-DC adapter, or battery.
The Arduino Mega 2560 Rev3 is compatible with most shields designed for the
Arduino Uno, Duemilanove, or Diecimila. Revision 3 includes the 1.0 pinout,
SDA and SCL pins near AREF, IOREF support for shield voltage adaptation,
stronger RESET circuit, and ATmega16U2 USB-to-serial converter.
Caution: The recommended input voltage range is
7V to 12V. If more than 12V is used, the voltage regulator
may overheat and damage the board.
ATmega2560 Microcontroller
ATmega16U2 USB-To-Serial Converter
54 Digital I/O Pins
14 PWM Output Pins
16 Analog Input Pins
4 UART Hardware Serial Ports
16MHz Crystal Oscillator
5V Operating Voltage
256KB Flash Memory
8KB SRAM & 4KB EEPROM
1.0 Pinout With IOREF
Ideal For Automation & Embedded Projects
Package Includes
- 1 × Official Arduino Mega 2560 ATmega2560 MCU Rev3 A000067
| Item Type | Development Board |
|---|---|
| Model | Mega |
| Model No | A000067 |
| Model Name | Mega 2560 |
| Microcontroller | ATmega2560 |
| Processor | ATmega16U2 |
| Operating Voltage | 5V DC |
| Input Voltage Recommended | 7V to 12V |
| Input Voltage Limit | 6V to 20V |
| Digital I/O Pins | 54, of which 14 provide PWM output |
| PWM Digital I/O Pins | 14 |
| Analog Input Pins | 16 |
| UART | 4 Hardware Serial Ports |
| Clock Speed | 16MHz |
| Memory | 256KB Flash Memory, of which 8KB used by bootloader, 8KB SRAM, 4KB EEPROM |
| DC Current Per I/O Pin | 40mA DC |
| USB Connection | Yes |
| Power Jack | Yes |
| ICSP Header | Yes |
| Reset Button | Yes |
| Applications | Embedded Design, Industrial, Communications, Networking, Sensing, Instrumentation, Automation, Process Control |
| Length | 102mm |
| Width | 51mm |
| Weight | 40g |
| Shipping Weight | 0.043kg |
| Shipping Dimensions | 12 × 4 × 3 cm |
