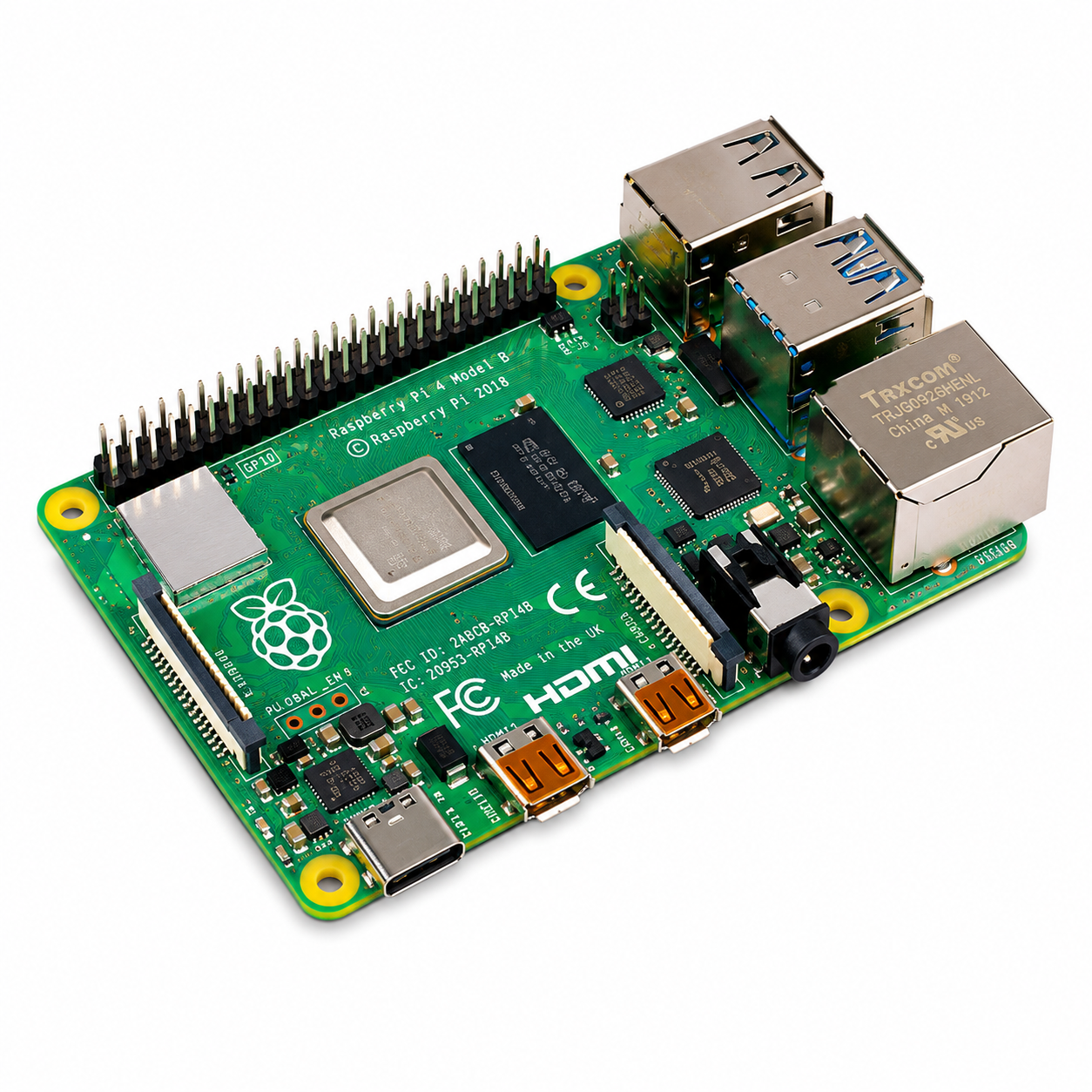

Raspberry Pi 4 Model B with 8GB RAM
The Raspberry Pi 4 Model B with 8GB RAM is the most
powerful variant of the Raspberry Pi 4 series, featuring the Broadcom
BCM2711 quad-core Cortex-A72 processor running at 1.5GHz and 8GB LPDDR4
memory. Built for demanding applications, it delivers desktop-class
performance with dual 4K display support, Gigabit Ethernet, dual-band
Wi-Fi, Bluetooth 5.0, USB 3.0 connectivity, and a fully compatible
40-pin GPIO header, making it ideal for AI, IoT, robotics, edge
computing, media servers, virtualization, and embedded development.
Broadcom BCM2711 Quad-Core Cortex-A72 Processor
8GB LPDDR4 High-Speed SDRAM
1.5GHz 64-Bit CPU Performance
Broadcom VideoCore VI Graphics Processor
Dual Micro-HDMI Ports with Dual 4K Display Support
Dual-Band 2.4GHz / 5GHz Wi-Fi
Bluetooth 5.0 & Bluetooth Low Energy (BLE)
Gigabit Ethernet Connectivity
2 × USB 3.0 + 2 × USB 2.0 Ports
USB Type-C Power Input (5V / 3A)
40-Pin GPIO Header with Raspberry Pi HAT Compatibility
MicroSD Card Slot for Operating System & Storage
Dual MIPI Camera & Display Interfaces
Ideal for AI, Robotics, IoT & Industrial Applications
Perfect for Desktop, Media Server & Edge Computing
Official Raspberry Pi 4 Development Board
Raspberry Pi 4 8GB Development Board
The Raspberry Pi 4 8GB Development Board is a powerful
Raspberry Pi 4 Model B single-board computer designed for desktop computing,
programming, IoT, automation, robotics, media applications, and advanced
embedded projects. With 8GB LPDDR4 SDRAM, it offers improved
multitasking capability and smoother performance for demanding applications.
Powered by the Broadcom BCM2711 Quad-Core Cortex-A72 64-bit SoC
clocked at 1.5GHz, the Raspberry Pi 4 Model B delivers
excellent processing power with improved power consumption and thermal
performance. It provides desktop-level performance comparable to entry-level
x86 PC systems while maintaining the compact Raspberry Pi form factor.
The Raspberry Pi 4 8GB supports dual-display output up to 4K
through two micro HDMI ports, hardware video decode up to 4Kp60,
dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 5.0, USB 3.0 connectivity,
Gigabit Ethernet, USB Type-C power input, and a standard 40-pin GPIO header.
Note: Use only the recommended power supply. Using any other
power supply may cause damage and will void the warranty.
Broadcom BCM2711 Quad-Core Cortex-A72 SoC
1.5GHz 64-bit Processor
8GB LPDDR4 SDRAM
Dual-Band 2.4GHz & 5GHz Wi-Fi
Bluetooth 5.0 Connectivity
Gigabit Ethernet Networking
2 × Micro HDMI Ports
Up To 4Kp60 Display Support
H.265 4Kp60 Video Decode
2 × USB 3.0 Ports
Standard 40-Pin GPIO Header
USB Type-C Power Input
Package Includes
- 1 × Raspberry Pi 4 8GB Development Board
| Model | Raspberry Pi 4 B |
|---|---|
| RAM Capacity | 8GB LPDDR4 SDRAM |
| Processor | Broadcom BCM2711 Quad-Core Cortex-A72 64-bit SoC @ 1.5GHz |
| Clock Speed | 1.5GHz |
| Operating Power | 5V 3A DC via USB Type-C Connector, 5V 3A DC via GPIO Header, PoE Enabled with Separate PoE HAT |
| GPIO | Standard 40-Pin GPIO Header |
| Video and Sound | 2-Lane MIPI DSI Display Port, 2-Lane MIPI CSI Camera Port, 4-Pole Stereo Audio and Composite Video Port, 2 × Micro HDMI Ports |
| Multimedia | H.265 4Kp60 Decode, H.264 1080p60 Decode, H.264 1080p30 Encode, OpenGL ES 3.0 Graphics |
| Wireless LAN | Dual-Band 2.4GHz and 5GHz 802.11 b/g/n/ac Wireless LAN |
| Bluetooth | Bluetooth 5.0 |
| USB | 2 × USB 3.0 Ports, 2 × USB 2.0 Ports |
| Ethernet | Gigabit Ethernet |
| Micro SD Card Slot | Yes, FAT32 Format, Supports Maximum 32GB Micro SD Card |
| UPC | 692759968863 |
| Operating Temperature | 0°C to +55°C |
| Dimensions | 85 × 56 × 19 mm |
| Weight | 52g |
| Shipping Weight | 0.057kg |
| Shipping Dimensions | 10 × 8 × 4 cm |
1 Year Warranty
This item is covered with a supplier warranty of 1 year
from the time of delivery against manufacturing defects only. In case of
manufacturing defects or issues, the part will be replaced after warranty
confirmation by the technical team. Refunds or replacement of the entire
product are not offered.
What voids the warranty: Misuse, tampering, static discharge,
accident, water damage, fire damage, use of chemicals, soldering, alteration,
incorrect power supply usage, or physical damage.
