Raspberry Pi 5 Model 16GB RAM

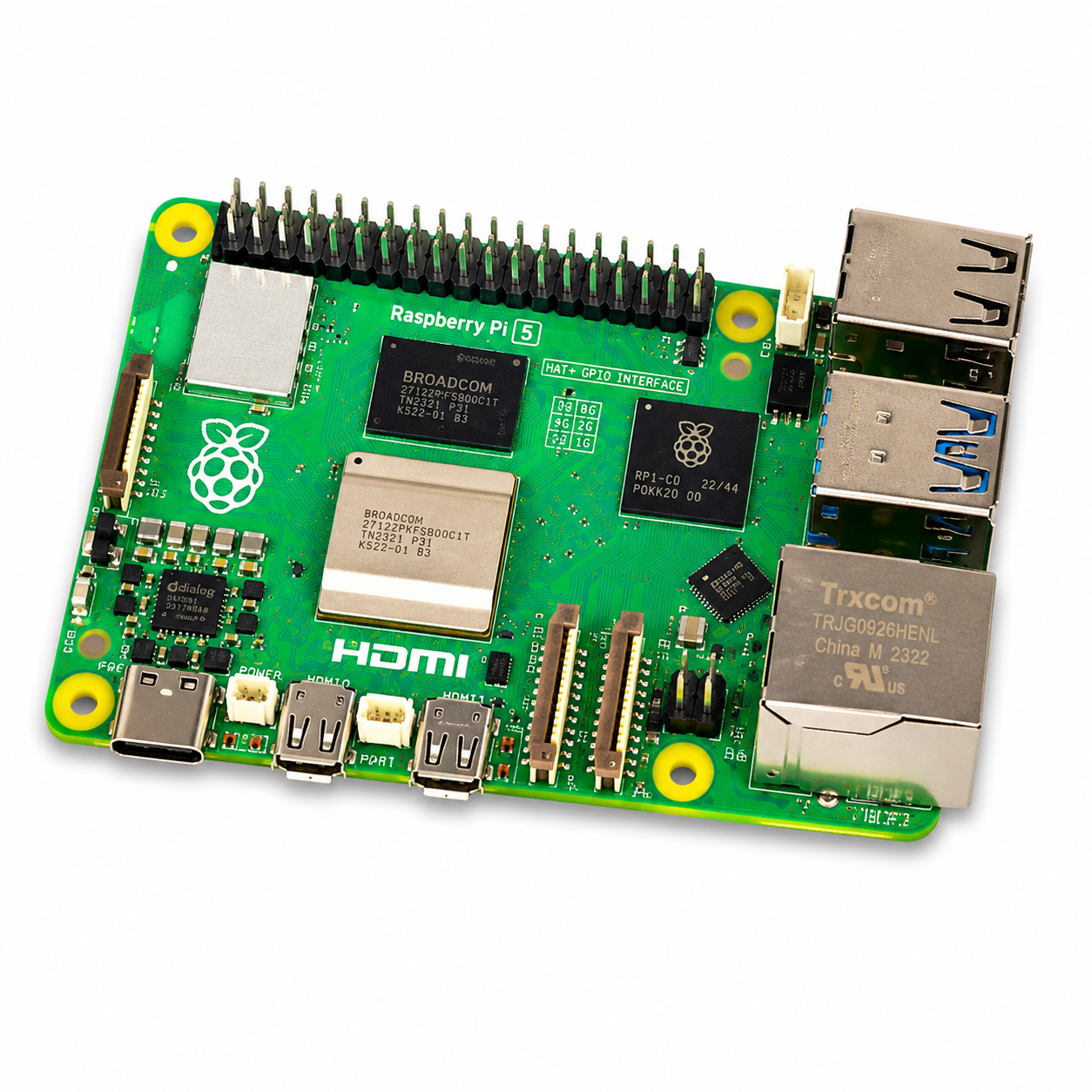

The Raspberry Pi 5 Model 16GB RAM is the most advanced and
highest-memory Raspberry Pi ever released. Powered by the next-generation
2.4GHz quad-core 64-bit Arm Cortex-A76 processor, it delivers exceptional
performance for AI development, virtualization, edge computing, robotics,
industrial automation, software development, and professional embedded
applications. Featuring 16GB LPDDR4X memory, dual-band Wi-Fi, Bluetooth
5.0, Gigabit Ethernet with PoE support, PCIe expansion, Real-Time Clock,
USB 3.0 connectivity, and a standard 40-pin GPIO header, it provides
desktop-class computing performance in an ultra-compact form factor.
2.4GHz Quad-Core 64-Bit Arm Cortex-A76 Processor
16GB LPDDR4X High-Speed Memory
VideoCore VII Graphics Processor
Dual 4Kp60 micro-HDMI Display Output
Dual-Band 2.4GHz & 5GHz Wi-Fi
Bluetooth 5.0 & Bluetooth Low Energy (BLE)
2 × USB 3.0 + 2 × USB 2.0 Ports
Gigabit Ethernet with PoE Support
PCIe 2.0 x1 High-Speed Expansion Interface
Dual MIPI Camera & Display Interfaces
Standard 40-Pin GPIO Header
Built-in Real-Time Clock (RTC)
On-Board Power Button
USB Type-C Power Input
Ideal for AI, Robotics, Edge Computing & Industrial Projects
Official Raspberry Pi 5 Development Board
Raspberry Pi 5 Model 16GB RAM
The Raspberry Pi 5 Model 16GB RAM doubles up your computing
speed with expanded memory for resource-intensive applications. This powerful
Raspberry Pi 5 variant is ideal for AI projects, data-heavy workflows,
multimedia processing, development tasks, edge computing, automation,
robotics, education, and advanced embedded applications.
The Raspberry Pi 5 Model 16GB RAM is built on the same high-performance
Raspberry Pi 5 platform as the 2GB, 4GB, and 8GB variants. It supports the
same accessories, cases, cooling solutions, and expansion options, while
offering a major memory upgrade for smoother multitasking and improved
responsiveness.
With 16GB LPDDR4X-4267 SDRAM, VideoCore VII GPU,
dual 4Kp60 HDMI display output with HDR support, 4Kp60 HEVC decoding,
dual-band Wi-Fi, Bluetooth 5.0/BLE, USB 3.0, Gigabit Ethernet with PoE+
support, PCIe 2.0 x1 expansion, RTC support, power button, and standard
40-pin GPIO header, this board unlocks endless creative and computing
possibilities.
Note: Use only the recommended Raspberry Pi power supply.
Using any other power supply may cause damage and will void the warranty.
16GB LPDDR4X-4267 SDRAM
VideoCore VII GPU
OpenGL ES 3.1 & Vulkan 1.2 Support
Dual 4Kp60 HDMI Output With HDR
4Kp60 HEVC Decoder
Dual-Band 802.11ac Wi-Fi
Bluetooth 5.0 / BLE
2 × USB 3.0 Ports With 5Gbps Support
2 × USB 2.0 Ports
Gigabit Ethernet With PoE+ Support
PCIe 2.0 x1 Interface
Real-Time Clock & Power Button
Package Includes
- 1 × Raspberry Pi 5 Model 16GB RAM
| Model Name | Raspberry Pi 5 Model 16GB |
|---|---|
| RAM | 16GB LPDDR4X-4267 SDRAM |
| GPU | VideoCore VII GPU |
| Graphics Support | OpenGL ES 3.1, Vulkan 1.2 |
| Connectivity | 2 × USB 3.0 Ports, 2 × USB 2.0 Ports, Bluetooth 5.0 / Bluetooth Low Energy |
| Wireless LAN | Dual-Band 802.11ac Wi-Fi |
| Bluetooth | Bluetooth 5.0 / Bluetooth Low Energy |
| GPIO | Standard 40-Pin GPIO Header |
| Video and Sound | 2 × Micro HDMI Ports Up To 4Kp60 Supported, 4-Pole Stereo Audio and Composite Video Port |
| Multimedia | Dual 4Kp60 HDMI Display Output With HDR Support, 4Kp60 HEVC Decoder |
| On Board Ports | 1 × DSI, 1 × Ethernet, 2 × Micro HDMI, 2 × USB 2.0, 2 × USB 3.0, 40-Pin GPIO, USB Type-C Port |
| Micro SD Card Slot | Yes, Supports High-Speed SDR104 Mode |
| Ethernet | Gigabit Ethernet With PoE+ Support |
| PCIe | PCIe 2.0 x1 Interface For Fast Peripherals |
| Camera / Display | 2 × 4-Lane MIPI Camera / Display Transceivers |
| Power Input | 5V/5A DC Via USB-C With Power Delivery Support |
| RTC | Real-Time Clock Powered By External Battery |
| Power Button | Yes |
| Operating Temperature | -10°C to 60°C |
| Length | 85mm |
| Width | 56mm |
| Weight | 105g |
| Shipping Weight | 0.1kg |
| Shipping Dimensions | 12 × 8 × 3 cm |
1 Year Warranty
This item is covered with a supplier warranty of 1 year
from the time of delivery against manufacturing defects only. In case of
manufacturing defects or issues, the part will be replaced after warranty
confirmation by the technical team. Refunds or replacement of the entire
product are not offered.
What voids the warranty: Misuse, tampering, static discharge,
accident, water damage, fire damage, use of chemicals, soldering, alteration,
incorrect power supply usage, or physical damage.
