Raspberry Pi 5 Model 2GB RAM

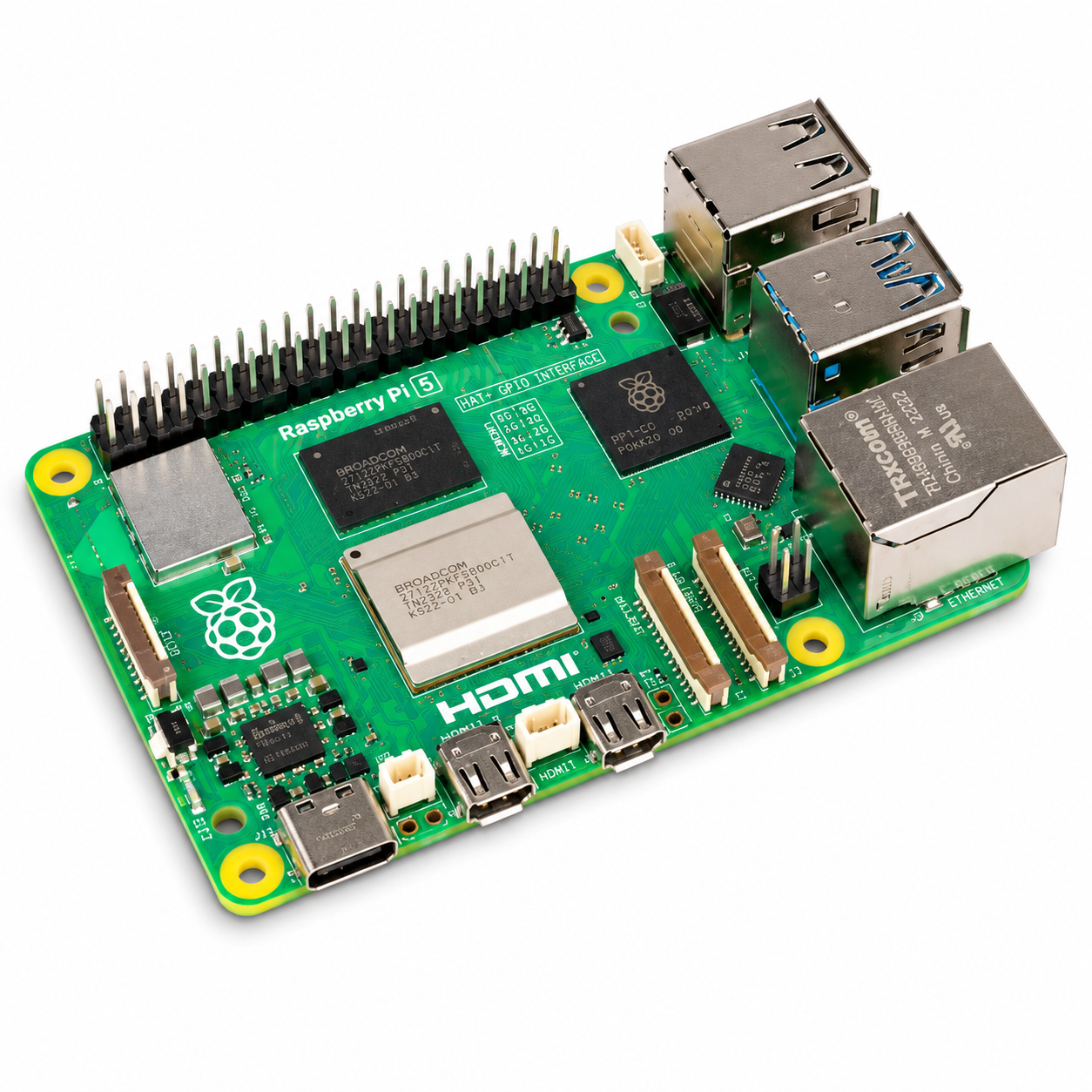

The Raspberry Pi 5 Model 2GB RAM is the latest-generation
Raspberry Pi single-board computer built for high-performance computing,
AI edge applications, robotics, embedded systems, home automation, and IoT
projects. Powered by the powerful quad-core ARM Cortex-A76 processor, it
delivers a significant performance improvement over previous generations
while featuring Real-Time Clock (RTC), USB 3.0 connectivity, Gigabit
Ethernet with PoE support, Bluetooth 5.0, and modern expansion interfaces.
Quad-Core ARM Cortex-A76 64-Bit Processor
2GB LPDDR4X High-Speed Memory
Built-in Real-Time Clock (RTC)
Dual USB 3.0 + Dual USB 2.0 Ports
Gigabit Ethernet with PoE Support
Bluetooth 5.0 Wireless Connectivity
Dual 4K micro HDMI Display Output
PCIe Expansion Interface
40-Pin GPIO Header for Hardware Expansion
High-Speed MIPI Camera & Display Interfaces
Ideal For AI, Robotics, IoT & Embedded Projects
Official Raspberry Pi 5 Development Board
Raspberry Pi 5 Model 2GB RAM
The Raspberry Pi 5 Model 2GB RAM is the latest generation
of the iconic Raspberry Pi single-board computer, designed to deliver faster
performance, improved graphics, better connectivity, and a smoother desktop
experience for makers, students, professionals, and industrial users.
Powered by a 64-bit quad-core Arm Cortex-A76 processor clocked at 2.4GHz,
Raspberry Pi 5 delivers up to 2–3× faster CPU performance compared to Raspberry
Pi 4. Its 800MHz VideoCore VII GPU provides enhanced graphics
capability, supporting dual 4Kp60 display output through micro
HDMI ports.
The board includes 2GB LPDDR4X-4267 SDRAM, dual-band
2.4GHz/5GHz Wi-Fi, Bluetooth 5.0/BLE, USB 3.0, USB 2.0, Gigabit Ethernet with
PoE+ support, PCIe 2.0 x1 interface, dual 4-lane MIPI camera/display
transceivers, Real-Time Clock support, onboard power button, and Raspberry Pi
standard 40-pin GPIO header.
Note: Use only the recommended Raspberry Pi power supply.
Using any other power supply may cause damage and will void the warranty.
2.4GHz Quad-Core 64-bit Arm Cortex-A76 CPU
512KB L2 Cache & 2MB Shared L3 Cache
800MHz VideoCore VII GPU
2GB LPDDR4X-4267 SDRAM
2.4GHz & 5GHz 802.11ac Wi-Fi
Bluetooth 5.0 / BLE
2 × USB 3.0 Ports With 5Gbps Support
2 × USB 2.0 Ports
Dual Micro HDMI With 4Kp60 Support
PCIe 2.0 x1 Interface
Gigabit Ethernet With PoE+ Support
On-Board Power Button
Package Includes
- 1 × Raspberry Pi 5 Model 2GB RAM
| Model Name | Raspberry Pi 5 |
|---|---|
| RAM Capacity | 2GB LPDDR4X SDRAM |
| Processor | 2.4GHz Quad-Core 64-bit Arm Cortex-A76 CPU |
| GPU | 800MHz VideoCore VII GPU |
| Connectivity | Bluetooth 5.0, Wi-Fi, Bluetooth Low Energy, USB-C, USB 3.0, USB 2.0 |
| Wireless LAN | 2.4GHz and 5.0GHz 802.11ac Wi-Fi |
| Bluetooth | Bluetooth 5.0 / Bluetooth Low Energy |
| GPIO | Standard 40-Pin GPIO Header |
| Multimedia | H.265 4Kp60 Decode |
| Video and Sound | 2 × Micro HDMI Ports up to 4Kp60 Supported |
| USB Ports | 2 × USB 3.0 Ports, 2 × USB 2.0 Ports |
| Ethernet | Gigabit Ethernet with PoE+ Support via Separate PoE+ HAT |
| Camera / Display | 2 × 4-Lane MIPI Camera / Display Transceivers |
| PCIe | PCIe 2.0 x1 Interface |
| MicroSD Card Slot | Yes, Supports High-Speed SDR104 Mode |
| Power Input | 5V/5A DC Power, USB-C PD Enabled |
| RTC | Real-Time Clock Supported With External Battery |
| On Board Ports | 40-Pin GPIO, Ethernet, DSI, USB Type-C, 2 × USB 2.0, 2 × USB 3.0, 2 × Micro HDMI |
| Operating Temperature | -10°C to 60°C |
| Length | 85mm |
| Width | 56mm |
| Weight | 105g |
| Shipping Weight | 0.1kg |
| Shipping Dimensions | 12 × 8 × 3 cm |
1 Year Warranty
This item is covered with a supplier warranty of 1 year
from the time of delivery against manufacturing defects only. In case of
manufacturing defects or issues, the part will be replaced after warranty
confirmation by the technical team. Refunds or replacement of the entire
product are not offered.
What voids the warranty: Misuse, tampering, static discharge,
accident, water damage, fire damage, use of chemicals, soldering, alteration,
incorrect power supply usage, or physical damage.
